Comprehensive Guide to Stainless Steel Beer Fermentation Tanks and Brewing Equipment
Brewing beer is an intricate process that relies heavily on specialized equipment. Among the most critical components in a brewery are the stainless steel fermentation tanks. These tanks are designed to ensure proper fermentation, conditioning, and maturation of beer, enhancing the overall quality and efficiency of production. In this article, we will explore the key features, benefits, and technical specifications of various types of beer fermentation tanks, focusing on 304 stainless steel tanks, commonly used in breweries worldwide.
Importance of Stainless Steel in Beer Brewing
Stainless steel, particularly SUS304 (304 stainless steel), is the industry standard for beer fermentation tanks due to its durability, corrosion resistance, and food-grade quality. The tanks are designed to withstand the high pressure and varying temperatures involved in the brewing process, ensuring that the beer remains uncontaminated and safe for consumption. Stainless steel tanks are easy to clean, and they maintain their structural integrity even after years of use, making them a reliable choice for brewers.
Key Features of 304 Stainless Steel Beer Fermentation Tanks
The following table outlines the key features of 304 stainless steel fermentation tanks:
| Feature | Description |
|---|---|
| Material | 304 stainless steel (SUS304) |
| Pressure Relief Valve | Ensures safe release of pressure during fermentation |
| CO2 Relief Valve | Allows for controlled CO2 release during fermentation |
| Cooling Jacket | Regulates temperature during fermentation |
| Sample Valve | Enables sampling of beer during the fermentation process |
| Side Manway | Provides access for cleaning and maintenance |
| CIP Connections | Allows for automated cleaning using a CIP (Clean-In-Place) system |
| Temperature and Pressure Gauges | Monitors fermentation conditions |
| Adjustable Feet | Provides stability and level installation |
These standard features ensure that stainless steel fermentation tanks are optimized for the brewing process, allowing for consistent, high-quality beer production.
Comparison of Fermentation Tanks by Capacity
Beer fermentation tanks come in various sizes and capacities to suit different brewing needs. Below is a comparison of tanks with different capacities:
| Capacity | Dimensions (OD x H) | Overall Height | Inner Thickness | Cooling Jacket Thickness | Weight |
|---|---|---|---|---|---|
| 7BBL | 1000 x 1250mm | 2530mm | 3mm | 2mm | 600kg |
| 10BBL | 1150 x 1250mm | 2670mm | 3mm | 2mm | 750kg |
| 15BBL | 1250 x 1680mm | 3250mm | 3mm | 2mm | 900kg |
| 20BBL | 1400 x 1700mm | 3400mm | 3mm | 2mm | 1100kg |
| 30BBL | 1650 x 1850mm | 3740mm | 3mm | 2mm | 1300kg |
| 40BBL | 1750 x 2050mm | 4040mm | 3mm | 2mm | 1600kg |
This table shows how capacity impacts the dimensions, inner thickness, and weight of the tank. Larger tanks, such as the 40BBL, are ideal for high-volume brewing operations, whereas smaller tanks like the 7BBL are better suited for brewpubs or small microbreweries.
Technical Features of Beer Brewing Equipment
Beer brewing equipment, especially fermentation tanks, have several technical features that ensure efficient fermentation, conditioning, and maturation of beer. These features are critical in maintaining beer quality and reducing contamination risks.
Technical Specifications of Standard Fermenters
| Feature | Specification |
|---|---|
| Max Working Pressure | 2 bar |
| Racking Arm | Rotatable 1.5″ racking arm with butterfly valve |
| Drainage Pipe | Bottom drainage pipe 1.5″ with butterfly valve |
| Carbonation Stone | For CO2 injection and carbonation control |
| Cooling Zones | Dimpled cooling zones on both the side and bottom |
| Insulation | 80mm polyurethane foam for thermal regulation |
| Sanitary Manway | Shadowless side manway for easy access |
| Temperature Sensor | High-accuracy PT100 temperature sensor |
| CIP Arm | 360° spray ball for effective cleaning |
| Legs | Heavy-duty SUS304 legs with leveling pads |
| Volume | 1300L total, 1000L working volume |
| Construction | 100% TIG welded joints with sanitary polish |
These technical features ensure that the brewing process is controlled, efficient, and safe. The addition of cooling jackets, CIP systems, and precise temperature control allows brewers to maintain optimal fermentation conditions.
Comparison of Different Types of Beer Fermentation Tanks
Different types of fermentation tanks serve various purposes, from primary fermentation to maturation and conditioning. Here is a comparison of different tank types:
| Tank Type | Purpose | Key Features | Application |
|---|---|---|---|

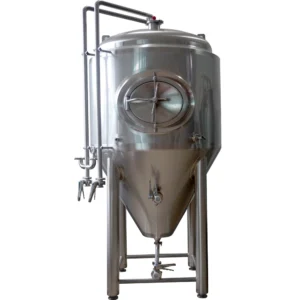

| Conical Fermenter | Primary fermentation | Tapered bottom for yeast collection, cooling jacket, pressure resistant | Ideal for primary fermentation and yeast harvesting |
| Unitank | Fermentation and maturation in one tank | Larger headspace, carbonation stone, solenoid valve for coolant | Combines fermentation and maturation in a single tank |
| Bright Beer Tank | Beer conditioning and maturation | Insulated body, CO2 recovery system, CIP-ready | Used for beer conditioning before packaging |
| Serving Tank | Beer storage for serving | Horizontal design, compact, temperature control | Used for storing beer for direct serving |
Unitanks are highly versatile, allowing brewers to conduct both fermentation and maturation in the same vessel, reducing the need for transferring beer between tanks. Bright beer tanks, on the other hand, are used for conditioning beer to improve clarity and carbonation before it is packaged or served.
Benefits of Stainless Steel Fermentation Tanks
Durability and Longevity
Stainless steel fermentation tanks, particularly those made from SUS304, are designed to last for decades with proper maintenance. Their corrosion-resistant properties ensure that the tanks remain intact even when exposed to harsh chemicals and cleaning agents.
Efficient Temperature Control
The integrated cooling jackets in these tanks allow for precise temperature control, a critical factor in beer fermentation. By maintaining optimal temperatures, brewers can ensure that the yeast remains active and the beer ferments evenly, leading to consistent quality.
Easy to Clean and Maintain
The smooth, sanitary surfaces of stainless steel fermentation tanks make them easy to clean using CIP systems. This reduces the risk of contamination and ensures that the tanks are always ready for the next batch of beer.
Application in Microbreweries and Brewpubs
Fermentation tanks are essential for breweries of all sizes. In microbreweries and brewpubs, space and efficiency are crucial. Stainless steel tanks with smaller capacities, such as the 7BBL or 10BBL tanks, are ideal for these settings as they allow for high-quality beer production without requiring excessive space.
For larger breweries, fermentation tanks with capacities of 20BBL or more provide the volume necessary for high production levels while maintaining beer quality. These tanks are often equipped with additional features like dual cooling zones, pressure relief systems, and advanced cleaning mechanisms to ensure large-scale operations run smoothly.
Frequently Asked Questions (FAQs)
1. What size of fermentation tank do I need for my brewery? The size of the tank depends on your yearly beer production volume and the variety of beers you plan to brew. For smaller brewpubs, a 7BBL to 10BBL tank is typically sufficient. For larger operations, tanks ranging from 15BBL to 40BBL are more suitable.
2. What utilities are required for operating a fermentation tank? Most fermentation tanks require water, electricity (typically 3-phase), and drainage systems. The exact utility requirements depend on the size and configuration of your brewery.
3. How long does a stainless steel fermentation tank last? With proper maintenance, stainless steel tanks can last for 20 to 30 years. This longevity makes them a worthwhile investment for any brewery.
Conclusion
Stainless steel fermentation tanks are the backbone of any successful brewery, offering durability, efficiency, and the ability to produce high-quality beer. Whether you are operating a small brewpub or a large-scale brewery, selecting the right fermentation tank and brewing equipment is crucial for the quality of your beer and the success of your business.
By comparing the different features and capacities of fermentation tanks, brewers can make informed decisions on the best equipment for their brewing needs.
