Comprehensive Guide to Horizontal Form Fill Seal (HFFS) Machines
Horizontal Form Fill Seal (HFFS) machines are integral to the packaging industry, providing efficient and automated solutions for various products. These machines are designed to form, fill, and seal packages horizontally, making them suitable for products that require specific positioning or protection during the packaging process. They are widely used in industries such as food, pharmaceuticals, cosmetics, and more. This article explores the different functions, technical features, usage, processes, and applications of HFFS machines from various competitors.
1. Overview of HFFS Machines
HFFS machines operate by forming a package from a roll of film, filling it with the product, and sealing it horizontally. The versatility of these machines allows them to handle various types of packaging materials, including films like polyethylene, polypropylene, and multi-layered structures. These machines can produce a range of package styles such as pillow packs, gusseted bags, and stand-up pouches.
Key Functions and Benefits:
-
- Efficiency: High-speed packaging with precise filling and sealing.
- Versatility: Suitable for various products like powders, liquids, and solid items.
- Automation: Minimal manual intervention required, improving productivity.
- Customization: Adjustable settings for bag length, filling volume, and sealing temperature.
2. Technical Features Comparison
Below is a comparison table highlighting the technical features of HFFS machines from leading competitors such as Shanghai Tiwin Industry Co., DXD Series, and TFD-380S Horizontal Flow Wrap machine:
| Feature | Shanghai Tiwin HFFS | DXD-660 HFFS | TFD-380S Horizontal Wrap |
|---|---|---|---|
| Productivity | Up to 290 BPM | Up to 600 bags/min | 30-250 bags/min |
| Max Bag Width | 450 mm | 400 mm | 220 mm |
| Bag Length | 35-250 mm | 55-200 mm | 80-480 mm |
| Film Width | 450 mm | 400 mm | 350 mm |
| Control System | PLC with touch screen | Servo system with dual frequency | Frequency control with touch screen |
| Sealing Mechanism | Heat-sealing, pillow type | Automatic high-speed sealing | Horizontal sealing, adjustable |
| Power Consumption | 5.5 kW | 5.5 kW | 6.8 kW |
| Dimensions (mm) | 5600x1000x1700 | 5600x1000x1700 | 3000x1150x1700 |
3. Quality and Design Aspects
The quality of HFFS machines largely depends on the build material, sealing precision, and adaptability to different packaging materials. Here’s how each competitor stacks up:
-
- Shanghai Tiwin HFFS: Known for its robust design and user-friendly interface, this machine is ideal for high-volume production. It integrates advanced servo control for precise sealing and filling, making it reliable for pharmaceutical and food products.
- DXD-660 HFFS: This model offers high customization capabilities with its wide range of bag dimensions and precise control over the sealing process. It is equipped with a touch screen and a dual-frequency servo system, ensuring efficient operation for a variety of packaging styles.

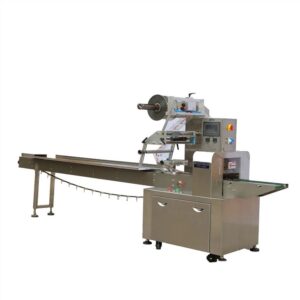

- TFD-380S Horizontal Flow Wrap: Designed for multi-purpose applications, this machine excels in product positioning and film feeding accuracy. It is widely used in light industries such as food, beverages, and medical supplies. The advanced frequency control technology allows for stable speed and precision.
4. Functions and Applications
HFFS machines are versatile and can be used across various industries. Here’s a breakdown of their functions and applications:
| Function | Shanghai Tiwin HFFS | DXD-660 HFFS | TFD-380S Horizontal Wrap |
|---|---|---|---|
| Product Handling | Solid items, powders, liquids | Solid items, trays, instant noodles | Food items like candies, biscuits, etc. |
| Packaging Style | Pillow packs, gusseted bags | Stand-up pouches, pillow packs | Horizontal pillow packaging |
| Applications | Pharmaceuticals, food products | Frozen food, daily articles, cosmetics | Food, beverage, medical, cosmetics |
| Customization | Adjustable bag size and filling volume | Flexible bag size and sealing patterns | Adjustable speed and bag length |
5. Usage and Operating Processes
HFFS machines typically operate in a highly automated fashion, involving minimal human intervention. Here’s a generalized process that most HFFS machines follow:
-
- Film Feeding: A roll of packaging film is fed into the machine, where it is cut and shaped into the desired form.
- Forming the Bag: The film is folded and formed into a horizontal package. Depending on the model, additional features like gussets or stand-up capabilities may be included.
- Product Filling: The product is filled into the formed package through automated dispensers. This step ensures precise control over the filling volume, especially for powders, liquids, and small solid items.
- Sealing: The machine seals the package using heat, creating a secure and airtight seal. Advanced models may offer different sealing patterns and temperatures to accommodate various packaging materials.
- Cutting: Once sealed, the package is cut to the specified length. HFFS machines with servo control and touch screens offer precision and consistency in this process.
Example Applications:
-
- Shanghai Tiwin HFFS: Ideal for pharmaceutical products requiring secure and sterile packaging, as well as food items like snacks and pre-packaged meals.
- DXD-660 HFFS: Used for quick-frozen foods with trays, biscuits, and other dry goods that require pillow or gusseted packs.
- TFD-380S Horizontal Flow Wrap: Commonly used for high-speed packaging of candies, baked goods, and other fast-moving consumer goods.
6. Applications of HFFS Machines
HFFS machines are suitable for a wide range of industries and products. Some of the most common applications include:
| Industry | Applications | Examples |
|---|---|---|
| Food & Beverage | Snack packaging, pre-packaged meals, candies, bakery products | Instant noodles, biscuits, bread |
| Pharmaceutical | Secure packaging for tablets, capsules, syringes, and medical gowns | Sterile pouches for syringes |
| Cosmetics | Packaging of creams, lotions, and cosmetic accessories | Single-use sachets for creams |
| Household Goods | Packaging of cleaning tools, sponges, and disposable products | Dishcloths, disposable gloves |
| Frozen Foods | Packaging of quick-frozen items like vegetables and ready-to-eat meals | Frozen trays and pouches |
| Stationery & Toys | Packaging of small stationery items and toys | Erasers, plasticine, small tools |
7. Customization and Future Trends
One of the significant advantages of HFFS machines is their ability to be customized according to the client’s requirements. Leading manufacturers offer machines with customizable sealing patterns, bag sizes, and even the type of film used. This flexibility allows businesses to adapt their packaging solutions to various products without needing multiple machines.
Future Trends:
-
- Integration with IoT (Internet of Things): Advanced HFFS machines are increasingly equipped with IoT capabilities, enabling real-time monitoring and diagnostics to enhance efficiency and reduce downtime.
- Eco-Friendly Packaging: There is a growing trend toward sustainable packaging solutions. Manufacturers are designing HFFS machines that can handle biodegradable and recyclable films, aligning with global efforts to reduce plastic waste.
- Enhanced Automation and Robotics: The integration of robotic arms for product placement and automated adjustments for machine parameters are expected to become more common, further enhancing efficiency.
8. Conclusion
HFFS machines provide versatile and efficient packaging solutions across various industries. Their ability to handle different packaging styles and materials, combined with advanced automation features, makes them indispensable in the modern packaging industry. By selecting the right HFFS machine, businesses can enhance their production capabilities, reduce waste, and adapt to the evolving demands of their market.
Shanghai Tiwin, DXD Series, and TFD-380S are examples of high-performing HFFS machines, each offering unique features that cater to different needs. Investing in the right HFFS machine not only boosts productivity but also ensures the quality and safety of packaged products, making it a vital component of any industrial production line.
Reach out to us for recommendations.
