Comprehensive Guide on CIP Return Pumps
CIP (Cleaning-In-Place) Return Pumps are essential in industries like food and beverage processing, dairy, pharmaceuticals, and cosmetics, where high standards of hygiene are paramount. These pumps ensure effective cleaning, reduce maintenance, and lower operational costs. This article provides a detailed overview of CIP return pumps, comparing technical features and types, explaining their applications, and addressing frequently asked questions.

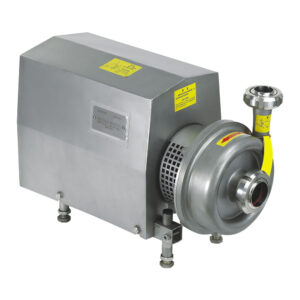

Overview of CIP Return Pump (HTK-RP-01)
Product Details:
| Feature | Specification |
|---|---|
| Product Name | CIP Return Pump |
| Model | HTK-RP-01 |
| Working Capacity | 5,000 to 30,000 L/H (Customizable) |
| Material | SUS304 / SUS316L |
| MOQ | 1 Unit |
| Production Capacity | 100 Units/Month |
This high-quality pump is designed to support industries that handle beverages, fruit juice, dairy, and more. Its key features include stable operation, reasonable design, efficiency, longevity, and easy maintenance, all ideal for a variety of CIP cleaning systems.
Technical Features Comparison Table
To understand how different CIP return pumps differ in specifications, here’s a comparison between the HTK-RP-01, the ZXL series, and a Sanitary Water Circulation Return Pump:
| Feature | HTK-RP-01 | ZXL Series | Sanitary Water Circulation Return Pump |
|---|---|---|---|
| Material | SUS304 / SUS316L | Stainless steel 304 / 316L | SS304, SS316L |
| Flow Rate | 5,000–30,000 L/H | Up to 35 m³/h | 7,000–30,000 L/H |
| Motor Power | Customizable | ABB or domestic options | 3hp to 10hp |
| Seal Type | Mechanical Seal | Double / Single Mechanical Seal | Double / Single Mechanical Seal |
| Max Speed | Customizable | 3600 min-1 | 2900–3500 RPM |
| Temperature Range | -10 ºC to 140 ºC | Close to boiling point | 14 ºF ~ 284 ºF |
| Pressure | 6 Bar Working / 10 Bar Design | Customizable | 6 Bar Working / 10 Bar Design |
| Connection Type | Thread, Clamp, Flange | Tri-Clamp, Thread, Flange | Triclover, Butt Weld, Threaded |
| Surface Finish | Mirror polished, Sandblast | Inner polished, Sandblast | Mirror, Matte |
| Application Scope | Food, Beverage | Wine, oil, syrups, alcohol | Food, Chemical, Pharmacy |
Each of these pumps offers unique strengths, from adaptable motor options to high-temperature tolerance, ensuring compatibility with a range of industrial applications.
Types of CIP Return Pumps and Their Applications

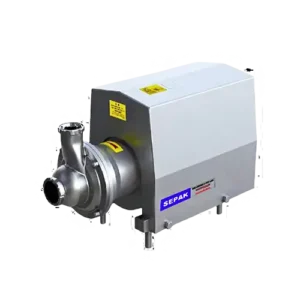

CIP return pumps come in various designs, primarily self-priming centrifugal pumps and sanitary water circulation return pumps. Here’s a comparison of their main attributes:
| Pump Type | Design Features | Primary Application | Advantages |
|---|---|---|---|
| Self-Priming Centrifugal Pump (ZXL Series) | Lateral, side-way pipe; Handles air/gas | Wine, oil, syrups, alcohol processing | High-efficiency, resistant to cavitation |
| Sanitary Water Circulation Return Pump | Single/double suction, open/closed impeller | CIP Cleaning in food & pharmaceutical | Optimal for low-liquid applications |
| CIP Return Pump (HTK-RP-01) | Customizable capacity, durable materials | General CIP in food and beverage | High flow rates, long service life |
These pumps serve varying roles based on the specific demands of the application, such as handling gas-laden liquids, maintaining hygiene standards, or performing at high flow rates.
FAQs About CIP Return Pumps
1. What is the main purpose of a CIP return pump?

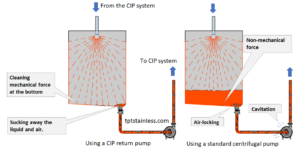

CIP return pumps are primarily used for returning cleaning solutions in CIP systems. They handle a mixture of air and liquid, which is crucial in preventing air lock issues that could impair cleaning efficiency.
2. Why is a self-priming pump preferred over a standard centrifugal pump for CIP applications?
Unlike standard centrifugal pumps, self-priming pumps can manage liquids with air or gas, preventing air lock and ensuring that cleaning solutions circulate properly. They also reduce maintenance costs and prevent wear on pump components.
3. What types of seals are used in CIP return pumps?
CIP return pumps use mechanical seals. Options include C/SIC/EPDM or other materials depending on the operating conditions and fluids handled, ensuring a secure seal for enhanced performance and longevity.
4. Can CIP return pumps handle temperature fluctuations?
Yes, many CIP return pumps, such as the HTK-RP-01 and ZXL series, are designed to operate within a broad temperature range, from -10 ºC to near-boiling temperatures, making them suitable for various cleaning applications.
5. What are the maintenance advantages of using CIP return pumps?
CIP return pumps, particularly self-priming models, reduce the risk of cavitation, which can damage impeller blades. By preventing dry running, they extend seal life and minimize downtime, leading to increased productivity.
6. What connection types are available for CIP return pumps?
CIP pumps offer various connection types, including thread, clamp, and flange options. This versatility ensures compatibility with diverse industrial setups and enhances convenience during installation.
7. Is it possible to use a CIP return pump to empty a product tank?
Yes, with its hygienic design, a CIP return pump can handle product transfer efficiently, ensuring minimal contamination risk and maximum operational flexibility.
Key Advantages of CIP Return Pumps
- Cleaning Cost Reduction: CIP return pumps minimize water and chemical usage by efficiently handling liquid and air mixtures, essential for effective tank cleaning without wastage.
- Enhanced Cleanability: The self-priming design of these pumps ensures that cleaning solutions reach all tank areas, eliminating residue and reducing the need for manual intervention.
- Maintenance Efficiency: By avoiding cavitation and dry running, CIP return pumps lower maintenance costs and extend operational lifespans, ultimately boosting productivity.
Conclusion
CIP return pumps are indispensable in industries that prioritize cleanliness and efficiency. With multiple options tailored for different operational requirements, from high-capacity models to self-priming centrifugal pumps, they offer high-performance solutions for CIP systems. By understanding the technical aspects, applications, and maintenance benefits of these pumps, businesses can ensure optimal operations, reduced downtime, and cost savings in their CIP processes.
