Automatic sticker labeling machines are essential components in the packaging industry, providing solutions for applying labels efficiently and accurately on various products. They are widely used in industries such as food, beverages, pharmaceuticals, cosmetics, and chemicals. This article explores and compares several automatic sticker labeling machines, focusing on their features, applications, and technical specifications. The analysis includes:
- Double Side Sticker Labeling Machine
- 7000BPH Big Drum Automatic Intelligent Self Adhesive TN-200LD Sticker Labeling Machine
- Fully Automatic Round Bottle Labeling Machine
- Higee Automatic Labeling Machines (Various Models)

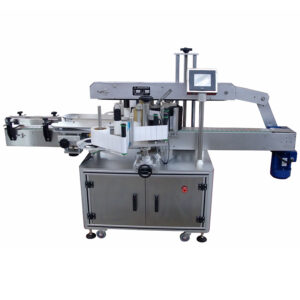

1. Double Side Sticker Labeling Machine
Description:
The double side sticker labeling machine is designed to apply labels on both sides of flat or curved bottles and containers. It operates with minimal maintenance and features an advanced control system that detects the presence of bottles, ensuring labels are only dispensed when bottles are on the conveyor belt. This machine is versatile, handling various shapes such as round, oval, rectangular, and square containers.
Technical Specifications and Features:
| Specification | Detail |
|---|---|
| Model | BZTB-DS |
| Labeling Precision | ±1mm |
| Labeling Speed | 60-120 pcs/min |
| Object Size | 30-280mm (H), 30-100mm (W) |
| Label Size | 25-300mm (L), 20-180mm (W) |
| Roll Size | 76mm (Inside), 300mm (Outside) |
| Voltage | AC110/220V, 50/60Hz |
| Power | 2KW |
| Machine Size | 2400×1450×1360mm (L×W×H) |
| Machine Weight | 500kg |
Features:
- Advanced Control System: Incorporates mature PLC control technology for stability and efficiency.
- Touch Screen Interface: User-friendly and practical for operations.
- Flexible Labeling Options: Suitable for various bottle shapes, including conical bottles.
- High Precision: The system includes an automatic product alignment mechanism for accuracy.
- Versatile Applications: Used for applying labels on different shapes and sizes of bottles and containers.
Applications:
This machine is ideal for industries that need to label double sides of containers, such as pharmaceuticals, food, and cosmetics. It is particularly effective for flat and rectangular bottles, ensuring precise and efficient labeling.

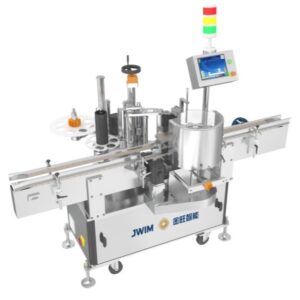

2. 7000BPH Big Drum Automatic Intelligent Self Adhesive TN-200LD Sticker Labeling Machine
Description:
The TN-200LD sticker labeling machine is built for high-speed labeling, specifically for larger drums and containers. It features a robust design and intelligent control system that maintains a high capacity and precision for labeling different drum sizes.
Technical Specifications and Features:
| Specification | Detail |
|---|---|
| Model | TN-200LD |
| Capacity | 7000 BPH (50ml), 5000 BPH (500ml), 4000 BPH (1000ml) |
| Label Size | Height: 20-180mm, Length: 50-320mm |
| Labeling Accuracy | ±1mm |
| Machine Weight | Around 350kg |
| Dimensions | 1960×1260×1740mm (L×W×H) |
| Applicable Bottle Diameter | Min: 140×200×320mm, Max: 260×290×500mm |
Features:
- High-Speed Operation: Capable of labeling up to 7000 bottles per hour, suitable for large-scale production lines.
- Versatile Drum Handling: Accommodates various drum sizes and ensures consistent label application.
- Intelligent Control: The system ensures precise label positioning and smooth operation without label wrinkles.
Applications:
This machine is perfect for industries dealing with larger containers such as chemicals, oils, and beverages, providing high-speed, efficient labeling suitable for mass production.

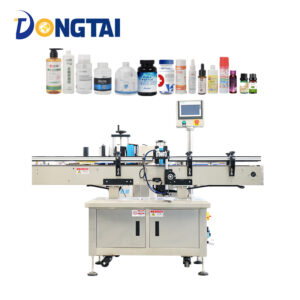

3. Fully Automatic Round Bottle Labeling Machine
Description:
The fully automatic round bottle labeling machine by Dongtaijixie is designed for accurate and stable labeling of round containers. The machine eliminates label wrinkles and ensures a smooth and consistent application process.
Features:
- Precision Labeling: The machine’s design allows for precise and stable label application, reducing errors and ensuring a high-quality finish.
- Versatile Labeling Capabilities: Suitable for wrap-around labeling on various bottle sizes.
- Customization Options: Can be customized for tapered bottles or other unique shapes.
Applications:
This machine is ideal for industries such as pharmaceuticals, cosmetics, and beverages, where high accuracy in labeling round containers is essential. It’s suitable for both small and medium-sized production lines.

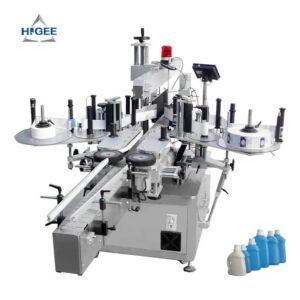

4. Higee Automatic Labeling Machines
Higee offers a diverse range of automatic labeling machines catering to various product shapes and sizes. With 15 years of experience, the company provides several series of labeling solutions:
Main Series and Their Applications:
| Series | Application | Details |
|---|---|---|
| HAY & HDY | Round bottles, jars, cans, cups | Wrap-around labeling for higher speed (HAY) and higher accuracy (HDY). |
| HAP | Flat surface labeling | Suitable for boxes, pouches, flat bottles, jar tops, etc. |
| HAS | Double sides labeling | Applies labels on round, square, and flat bottles, jerrycans, and buckets. |
| HAW | Small diameter bottles, vials, tubes | Suitable for cable tagging, tube bottoms labeling, and more. |
Comparison of Automatic Sticker Labeling Machines
| Feature | Double Side Labeling Machine | TN-200LD Sticker Labeling Machine | Fully Automatic Round Bottle Labeling Machine | Higee Labeling Machines |
|---|---|---|---|---|
| Labeling Speed | 60-120 pcs/min | Up to 7000 BPH | Medium to high speed | Varies by model |
| Precision | ±1mm | ±1mm | High precision | Varies by model |
| Applicable Bottle Types | Flat, round, oval, square | Large drums/containers | Round bottles | Multiple shapes and sizes |
| Voltage | AC110/220V | AC110/220V | AC110/220V | AC110/220V |
| Label Size Compatibility | 25-300mm (L), 20-180mm (W) | Height: 20-180mm, Length: 50-320mm | Varies | Varies by series |
| Applications | Food, cosmetics, pharma | Chemicals, oils, beverages | Pharma, beverages, cosmetics | Varies by industry |
Conclusion
Automatic sticker labeling machines offer diverse solutions depending on industry needs, product types, and production scales. The Double Side Sticker Labeling Machine is suitable for small to medium-sized bottles and containers requiring double-side labeling, while the TN-200LD machine caters to high-speed, large container labeling. Fully automatic round bottle machines are ideal for precise wrap-around labeling on round containers. Higee’s diverse range provides flexibility for various industries and labeling needs, from small bottles to larger, custom-shaped containers.
When selecting an automatic sticker labeling machine, it is important to consider factors such as speed, precision, bottle shape, and production capacity to match the machine capabilities with production requirements. Each machine has its unique strengths, ensuring there’s a suitable option for every labeling need across industries. Whenever you need referrals on the best selection, we are here to guide you!
