Tube Filling Machines
Tube filling machines are essential equipment in the pharmaceutical, cosmetic, food, and chemical industries. They provide efficient and precise filling and sealing for various types of tubes, including plastic, laminated, and metal. This article explores tube filling machines from different competitors, detailing their technical features, quality, functions, and applications. It includes a comprehensive table for technical comparisons, highlighting critical aspects like speed, sealing technology, and filling volume.
Overview of Tube Filling Machines
Tube filling machines are versatile, designed for automatic, semi-automatic, and manual operation depending on production needs and budgets. They are commonly used for packaging products like toothpaste, ointments, creams, adhesives, and various gels and lotions. The machines accommodate different tube materials, such as aluminum, plastic, and laminate, and can be customized based on production speeds, tube sizes, and sealing methods.
Working Process of Tube Filling Machines
The tube filling process generally involves several key stages:
- Tube Loading: Tubes are loaded into the machine’s magazine or hopper. These tubes can be plastic, aluminum, or laminate.
- Tube Orientation: The machine positions the tubes correctly for the filling and sealing process.
- Filling: The product is dispensed into the tubes in predetermined volumes using volumetric or weight-based filling mechanisms.
- Sealing: The open end of each tube is sealed using heat sealing, ultrasonic sealing, or crimping, depending on the tube material.
- Coding and Marking: Batch numbers, expiration dates, or other details are printed on the tubes using integrated coding systems.
- Inspection: Vision systems or sensors inspect the tubes for defects.
- Tube Ejection: Filled and sealed tubes are ejected for further processing or packaging.
Technical Features and Comparisons
Here’s a detailed comparison of tube filling machines from different manufacturers, focusing on speed, sealing methods, filling volume, and other technical specifications:
| Feature | TWP Universal Tube Filling Machine | Plastic Tube Filling Machine (12 tubes/min) | Plastic Tube Filling Machine (40 tubes/min) | Aluminum Tube Filling Machine (35 tubes/min) | Aluminum Tube Filling Machine (10 tubes/min) |
|---|---|---|---|---|---|
| Speed | 30 tubes per minute | 12 tubes per minute | 40 tubes per minute | 35 tubes per minute | 10 tubes per minute |
| Sealing Method | Hot Air Sealing | Hot Air Sealing | Hot Air Sealing | Crimping | Crimping |
| Tube Type | Plastic, Aluminum | Plastic/Laminate | Plastic/Laminate | Aluminum | Aluminum |
| Tube Orientation | Automatic | Manual | Automatic | Automatic | Manual |
| Filling Volume | 3 – 260ml | Customizable | Customizable | Customizable | Customizable |
| Filling Accuracy | < +/- 1% | < +/- 1% | < +/- 1% | < +/- 1% | < +/- 1% |
| Power Supply | 220-240V, 1-phase, 2.8kW | 220-240V, 1-phase | 220-240V, 1-phase | 220-240V, 1-phase | 220-240V, 1-phase |
| Dimensions | 35.4” W x 37.4” D x 66.9” H | Compact | Standard Size | Medium | Compact |
Functions and Quality Considerations
The quality and functionality of tube filling machines vary based on their design and manufacturer. Below is a detailed explanation of their specific features:
- Automatic Tube Orientation:
- Some machines, like the TWP Universal model, offer automatic tube orientation, ensuring that each tube is positioned correctly for filling and sealing. This feature reduces manual intervention, enhancing efficiency and reducing human error.
- Other models, particularly tabletop versions, may require manual orientation, making them more suitable for smaller production lines.
- Sealing Technology:
- Machines utilize different sealing methods, including hot air, ultrasonic sealing, and crimping. Hot air sealing is prevalent for plastic and laminate tubes, while crimping is often used for aluminum tubes.
- Advanced machines also incorporate coding and trimming capabilities, such as embossing batch numbers or dates, enhancing product traceability.
- Customization:
- Tube filling machines offer varying degrees of customization. Users can adjust tube size, filling volume, and production speed to match their specific requirements. For example, some models can fill between 3-260ml, catering to different product viscosities and volumes.
- Quality Control Systems:
- Integrated vision systems or sensors are available in high-end machines to detect defects in filled and sealed tubes. This ensures that only correctly filled and sealed tubes proceed to the next production stage.
Applications of Tube Filling Machines
Tube filling machines are used across various industries:
- Pharmaceutical Industry: These machines fill and seal tubes for ointments, gels, and medicinal creams, ensuring sterile and contamination-free packaging.
- Cosmetic Industry: They package beauty products like skin creams, lotions, and gels in aesthetic, leak-proof tubes.
- Food Industry: Filling machines are used for sauces, pastes, and other food products, ensuring precise dosage and hygienic packaging.
- Chemical Industry: Adhesives, AB glue, and other chemicals are efficiently packed using these machines, providing safe and secure packaging solutions.
Competitors and Their Offerings
1. TWP – The Whole Package

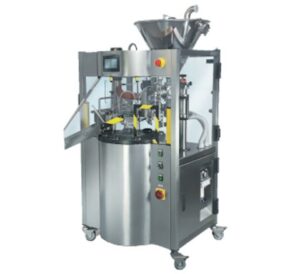

- Universal Tube Filling Machine: This fully automatic machine operates at a speed of 30 tubes per minute and can handle both plastic and aluminum tubes. It offers features like hot air sealing, automatic tube orientation, and integrated coding systems, making it versatile for various industries.
- Plastic Tube Filling Machines: Available in tabletop and fully automatic versions, these models cater to different production needs. The tabletop model runs at 12 tubes per minute, while the fully automatic version reaches up to 40 tubes per minute, suitable for medium to high-volume production lines.
- Aluminum Tube Filling Machines: TWP offers models for both low and high-volume production, with options like 10 tubes per minute for smaller operations and 35 tubes per minute for larger facilities.
2. Other Manufacturers
- Several other manufacturers offer specialized machines for different tube materials and production capacities. Their models may focus on niche applications such as filling high-viscosity products or accommodating unique tube designs.
- These competitors emphasize flexibility, allowing users to choose between manual, semi-automatic, and fully automatic systems based on their production scale and budget.
Usage and Process Details
- Pharmaceutical Usage:
- The machines are configured to handle sterile filling of ointments and gels, maintaining strict hygiene standards. They incorporate features like batch number embossing to ensure traceability and compliance with regulatory requirements.
- Cosmetic Usage:
- For cosmetics, the machines fill a range of viscosities, from light lotions to thick creams. Automatic tube orientation and trimming functions ensure a polished, professional finish suitable for retail.
- Food Industry:
- In food applications, tube filling machines are designed to handle sauces and pastes. They ensure precise dosage and leak-proof sealing, vital for food safety and shelf stability.
Conclusion
Tube filling machines are crucial across multiple industries, providing reliable, efficient, and customizable solutions for tube-based packaging. Understanding the various features and options available from different competitors helps businesses select the right equipment tailored to their production needs. The ability to compare technical specifications, sealing technologies, and other functionalities allows for a more informed decision, ensuring optimal efficiency and product quality.
By leveraging advanced features like automatic orientation, integrated coding systems, and diverse sealing methods, businesses can maximize productivity while maintaining high standards of packaging quality.
